The new standard in multiple dimensions

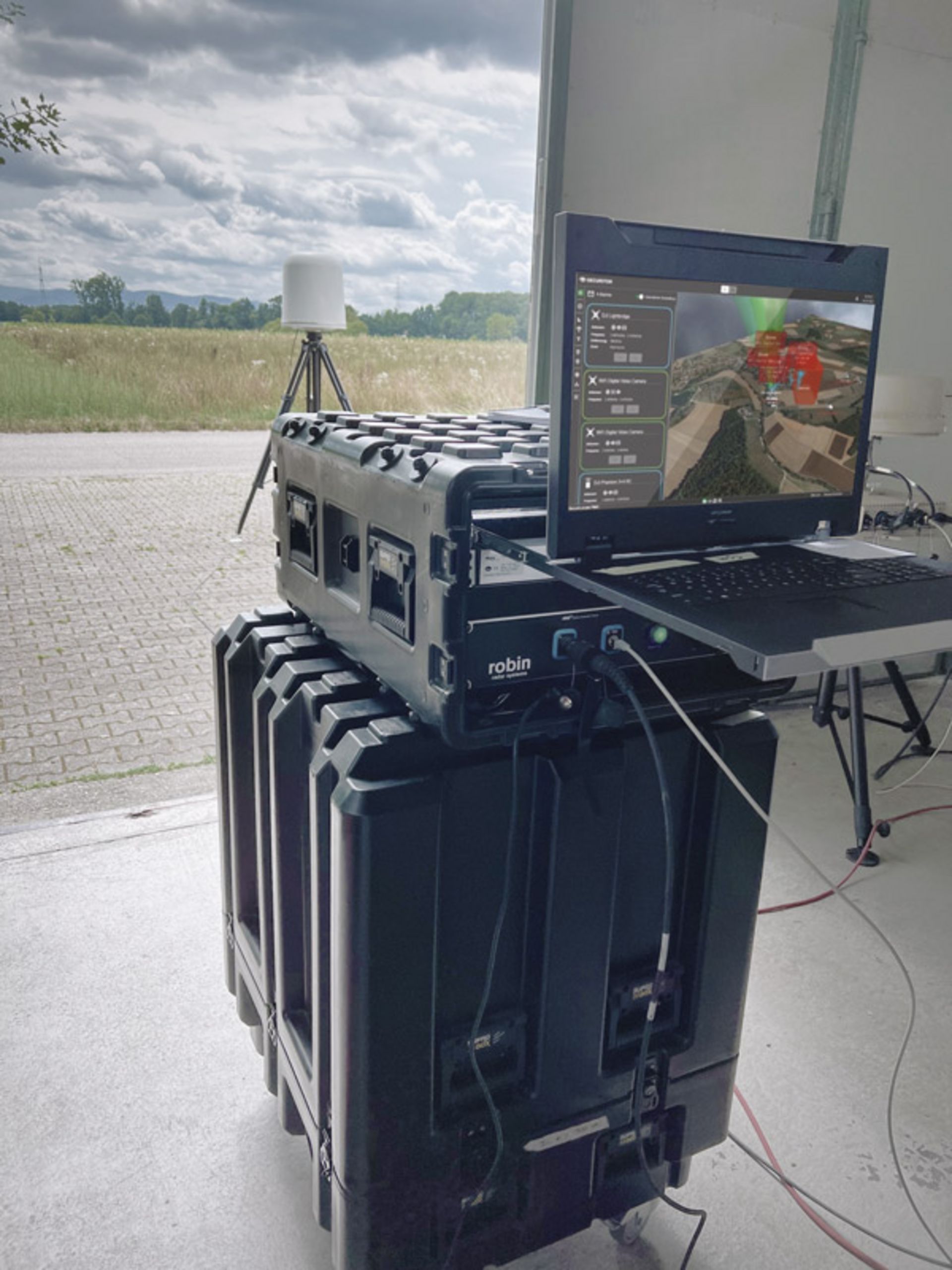

When it comes to closing all possible security gaps in drone defense, there’s no better way than with the SecuriDrone Radar IRIS 360. Flying over by conventional radar systems or the use of autonomous drones without radio transmission pose no challenge—the ideal supplement to the RF cyber systems.
Benefits
- Extensive surveillance sector with a 4D radar thanks to an azimuth coverage of 360° and an enormous height coverage of 60°
- Usable without special permission thanks to a special frequency band, and even mobile during the journey
- False alarms will be almost entirely ruled out through the innovative recognition of the rotor blade with the means of a micro doppler function
- Even drone swarms with hundreds of objects will be reliably recognized and followed and—through integration in the SecuriDrone Perimeter Management System and an RF Cyber function chain—finally taken over
and defended against
| Weight and dimensions | 25 kg, 55,4 x 62,3 cm |
| Sensor type | FMCW |
| Frequency range | X-Band (8900-9650 MHz) |
| Environmental and radio conformity | MIL-STD-810H Certified</br>IP66 |
| Operating temperature | -40 °C to +65 °C |
| Detection range | up to 4 km</br>(dependent on drone type) |
| Accuracy range | 0,6m |
