When greater ranges are needed

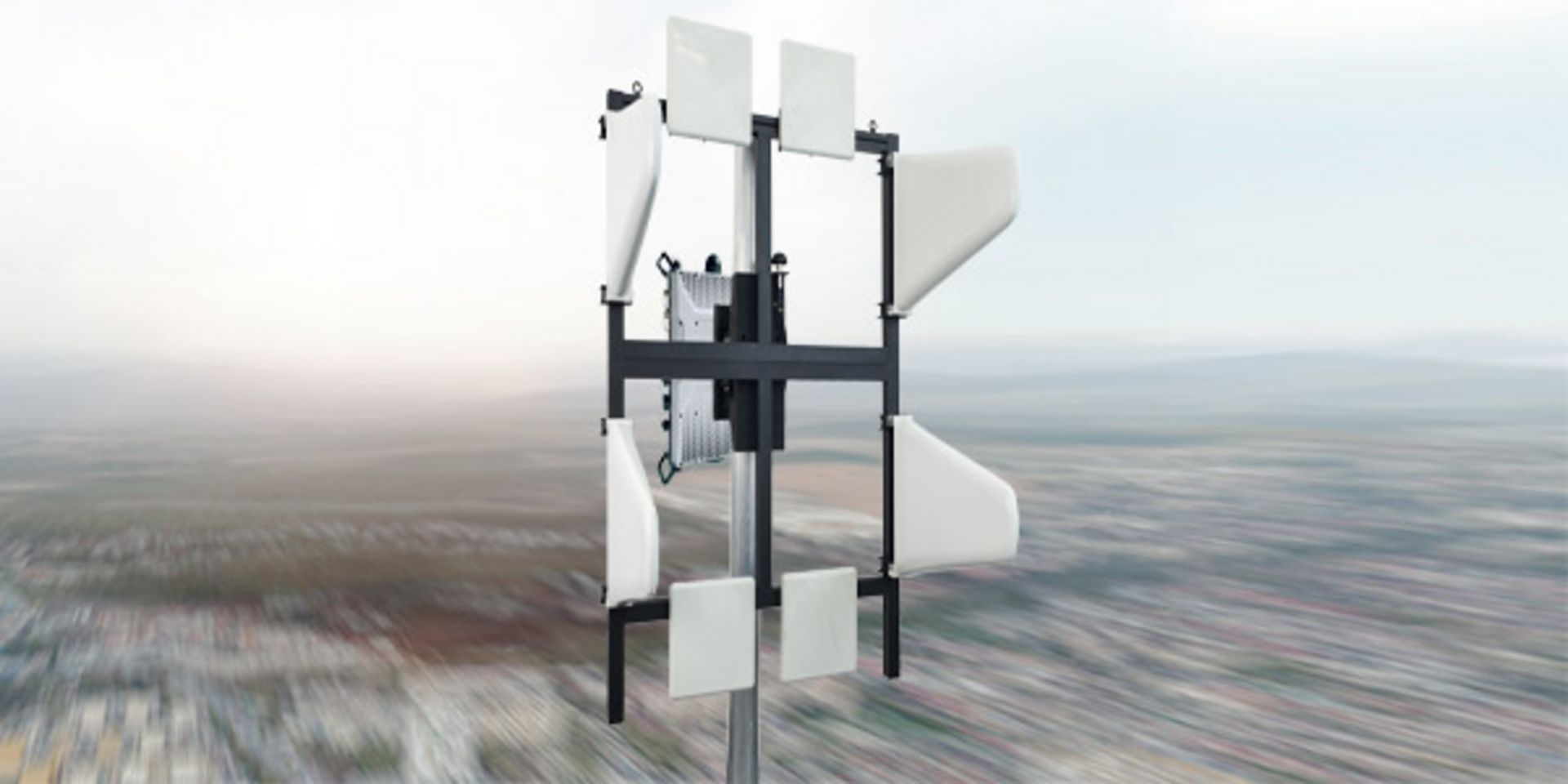

When it comes to stationary surveillance of an extensive area, the one-of-a-kind SecuriDrone RF Cyber Long-Range shows what it can do. Ideal areas of use are airports, extensive infrastructure areas, and border sectors with their varied threat potential.
Benefits
- No disturbance of other navigation and communications systems thanks to next-gen RF Cyber technology
- Extension of the directed coverage sector through certified, IP65-conforming ultra broadband antenna units with IP67-conforming Wi-Fi antenna.
- Easy to install mount bracket on which the direction sensor will be secured
- Designed for extreme weather conditions
- Complete scope of service with multipolar broadband HF cable, which connects the SDR processing unit with the stationary antenna and the GPS connection
- Seamless integration in the SecuriDrone Perimeter Management System
| Weight and dimensions |
12,8 kg, 39 x 52 x 12 cm (SDR) 40 kg, 90 x 115 x 181 cm (antenna) | ||
| Antenna Array Elements |
4 x Ultra-wide-band antenna 4 x Dual-band Wi-Fi 2,4/5,8 GHz antenna 1 x GPS-antenna | ||
| Antenna coverage angle | EL | AZ | |
| UWM antenna (3 db) | 50° | 60° | |
| WiFi antenna (6 db) |
2,4 GHz to 35° 5,8 GHz bei 20° |
2,4GHz to 75° 5,8GHz bei 30° | |
| Radio conformity |
Antenna - IP65 SDR - IP66 | ||
| Operating temperature | -30 °C to +50 °C | ||
